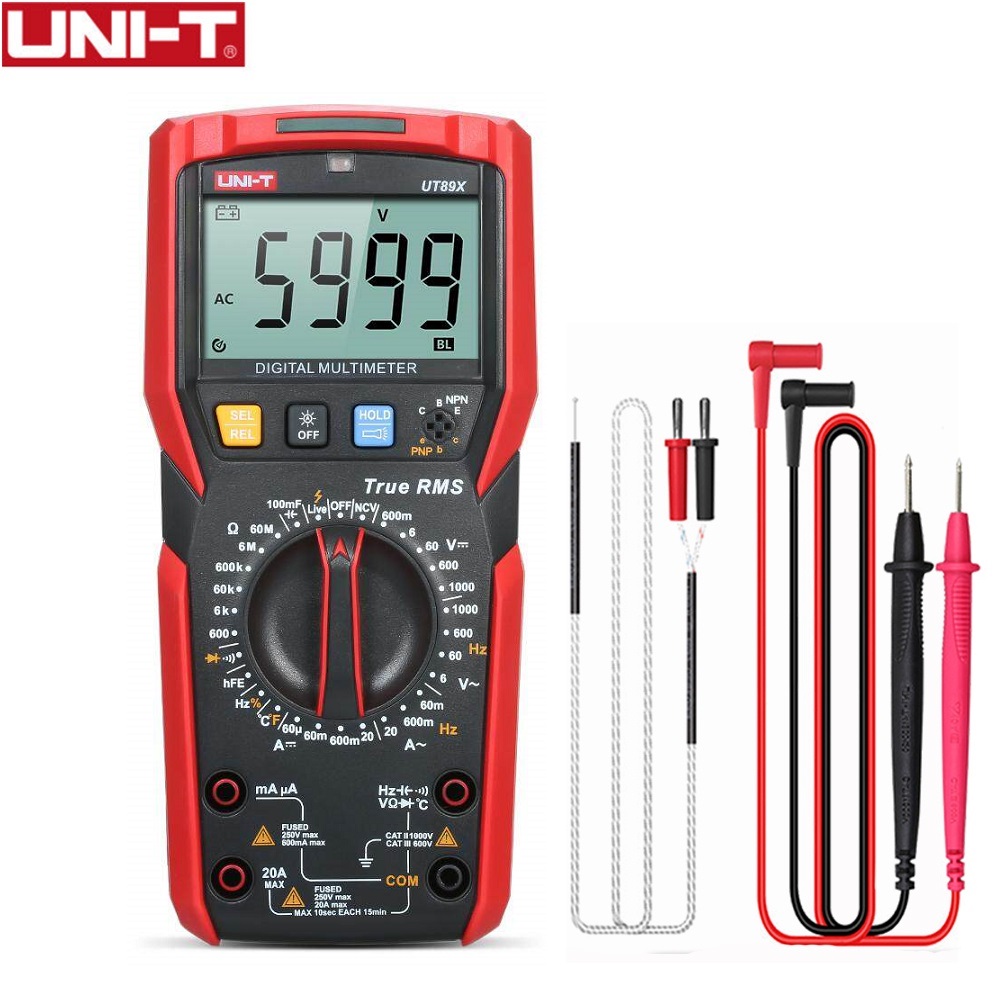

มัลติมิเตอร์ UT-89X UNI-T
GTIN 6935750589007
| Specifications | Range | UT89X |
| DC voltage (V) | 600mV/6V/60V/600V/1000V | ±(0.5%+2) |
| 200mV/2V/20V/200V/1000V | ||
| AC voltage (V) | 6V/60V/600V/1000V | ±(0.8%+5) |
| 200mV/2V/20V/200V/1000V | ||
| DC current (A) | 60μA/60mA/600mA/20A | ±(0.8%+8) |
| 60μA/6mA/60mA/600mA/20A | ||
| 2000μA/200mA/20A | ||
| AC current (A) | 60mA/600mA/20A | ±(1%+12) |
| 2000uA/200mA/20A | ||
| Resistance (Ω) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+3) |
| 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ | ||
| Capacitance (F) | 100mF | ±(2.5%+20) |
| 200mF | ||
| Conductance (ns) | 200nS | |
| Frequency (Hz) | 9.999Hz/9.999MHz | ±(0.1%+4) |
| 60MHz | ||
| Duty cycle | 0.1%~99.9% | ±(2%+5) |
| Temperature (℃) | -40℃~1000℃ | ±(2%+4) |
| Temperature (℉) | -40℉~1832℉ | ±(2%+8) |
| Live wire test | √ | |
| LED test | ||
| Audible/visual alarm | V/A/Cap/Diode | Live/hFE/NCV |
| Transistor Hfe | √ | |
| Dual range NCV test | √ | |
| Flashlight | √ | |
| MAX/MIN | ||
| Peak Hold | ||
| LPF measurement |
